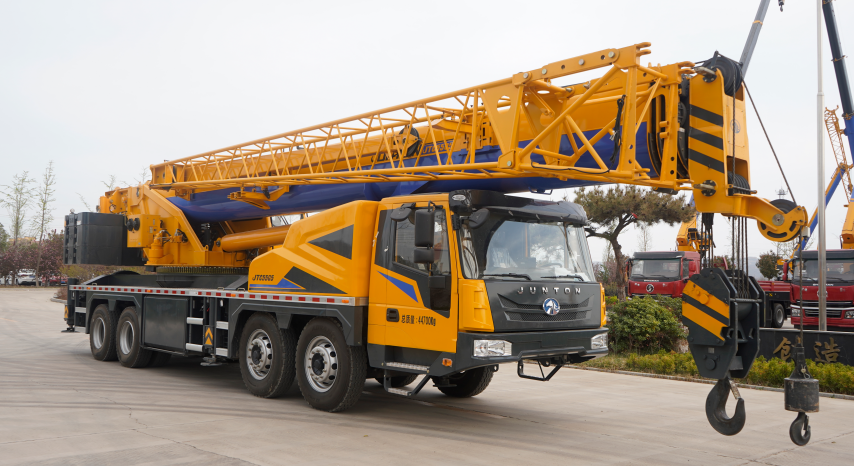

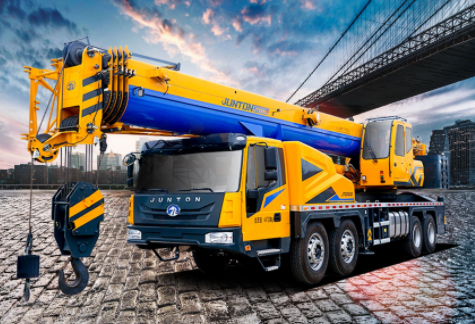

| JTC55G5 | |||
| Category | Item | Unit | Value |
| Overall Dimension | Overall Length | mm | 14400 |
| Overall Width | mm | 2800 | |
| Overall Height | mm | 3750 | |
| Wheel Base | mm | 1450+4380+1350 | |
| Weight | Gross Weight | kg | 44700 |
| Engine Model | / | YCS09360 | |
| Engine's Rated Power | kw/(r/min) | 265 | |
| Engine's Rated Torque | N.w/(r/min) | 1600 | |
| Travel | Max Travel Speed | km/h | 90 |
| Min.ground clearance | mm | 290 | |
| Max.gradeability | % | 45 | |
| Min Steering radius | m | 24 | |
| Transmission | / | 10-speed | |
| Technical Parameters | |||
| Category | Item | Unit | Value |
| Main Performance | Max Rated Lifting Weight | T | 55 |
| Max Lifting Moment of Basic Boom | kN.m | 2254 | |
| Max Lifting Moment of Full-extension Boom | kN.m | 1223 | |
| Boom length | m | 48 | |
| Boom Sections(Qty) | / | 5 | |
| Boom shape | / | U-Shape | |
| Outrigger span((Longitudinal) | mm | 6270 | |
| Outrigger span(Transverse) | mm | 7800 | |
| Speed Parameter | Max Slewing speed | r/min | 1.8 |
| Max Main winch Speed | m/min | 140 | |
| Max Auxiliary winch Speed | m/min | 140 | |
| Full extension/retraction time of boom | s | 90/110 | |
| Full luffing up/down time of boom | s | 50/70 | |
| Load Chart | |||||||||||||||||||||
| Telescopic Boom（m） | Telescopic Boom（m） | Telescopic Boom（m） | |||||||||||||||||||
| Radius (m) | Cylinder I Full extension, Outtrigger Full extension, Side-rear Lifting | Cylinder I 0% extension, Outtrigger Full extension, Side-rear Lifting | Cylinder I 50% extension, Outtrigger Full extension, Side-rear Lifting | ||||||||||||||||||
| 12.2 | 16.7 | 21.1 | 25.6 | 30.1 | 34.6 | 39.1 | 43.5 | 48 | 21.1 | 25.6 | 30.1 | 34.6 | 39.1 | 43.5 | 16.7 | 21.1 | 25.6 | 30.1 | 34.6 | 39.1 | |
| 3.0 | 55000 | ||||||||||||||||||||
| 3.5 | 54500 | ||||||||||||||||||||
| 4.0 | 53500 | 48500 | 30000 | ||||||||||||||||||
| 4.5 | 51000 | 47500 | 38000 | 30000 | 30000 | 27500 | 30000 | 28500 | 24000 | ||||||||||||
| 5.0 | 47000 | 44500 | 37000 | 30000 | 29000 | 30000 | 27500 | 24000 | 30000 | 27500 | 23000 | 18500 | |||||||||
| 5.5 | 42300 | 41500 | 36000 | 30000 | 27500 | 30000 | 27500 | 24000 | 30000 | 26600 | 22300 | 17800 | |||||||||
| 6.0 | 38500 | 39500 | 34500 | 30000 | 26700 | 24500 | 30000 | 27500 | 24000 | 18000 | 30000 | 26000 | 21500 | 17000 | 14000 | ||||||
| 6.5 | 35500 | 35500 | 32500 | 30000 | 26200 | 24000 | 30000 | 27000 | 23500 | 18000 | 30000 | 25200 | 21000 | 16400 | 13600 | ||||||
| 7.0 | 32500 | 33000 | 31000 | 29000 | 25800 | 23500 | 20000 | 30000 | 26400 | 23000 | 17000 | 14000 | 30000 | 24500 | 20400 | 15800 | 13200 | ||||
| 8.0 | 28500 | 28500 | 28500 | 28000 | 25000 | 23000 | 18500 | 30000 | 25000 | 21000 | 15600 | 14000 | 30000 | 23000 | 19000 | 14500 | 12400 | 10000 | |||
| 9.0 | 25500 | 25000 | 24000 | 25500 | 24200 | 22000 | 18000 | 14000 | 10000 | 25700 | 23600 | 19500 | 14500 | 13500 | 10000 | 26500 | 22000 | 18000 | 13600 | 11600 | 10000 |
| 10.0 | 21500 | 21300 | 21500 | 22000 | 21500 | 17000 | 13100 | 1000 | 21300 | 22300 | 18500 | 13700 | 13000 | 9600 | 22000 | 21000 | 17000 | 12700 | 10900 | 9800 | |
| 11.0 | 18500 | 18300 | 18500 | 18500 | 19000 | 16200 | 12700 | 10000 | 19300 | 19000 | 17500 | 13000 | 12400 | 9100 | 18700 | 19500 | 16000 | 11800 | 10300 | 9300 | |
| 12.0 | 15700 | 15500 | 16000 | 16000 | 16500 | 15100 | 11900 | 9500 | 15600 | 16400 | 16500 | 12200 | 11800 | 8700 | 16100 | 17000 | 15200 | 11200 | 8800 | 8900 | |
| 14.0 | 11800 | 12300 | 12300 | 13000 | 13500 | 11000 | 9000 | 12000 | 12700 | 13000 | 11000 | 10800 | 8100 | 13200 | 13500 | 10000 | 8800 | 8400 | |||
| 16.0 | 9000 | 9400 | 9800 | 10500 | 10600 | 10000 | 8400 | 9500 | 10000 | 10300 | 10000 | 9900 | 7500 | 10500 | 11000 | 9000 | 8000 | 7800 | |||
| 18.0 | 6600 | 7500 | 7800 | 8800 | 9000 | 8600 | 7400 | 7700 | 8200 | 8400 | 8700 | 8800 | 6900 | 8600 | 9000 | 8300 | 7300 | 7000 | |||
| 20.0 | 5800 | 6300 | 7300 | 7400 | 7300 | 6700 | 6600 | 7000 | 7400 | 7600 | 6400 | 7500 | 7400 | 6600 | 6500 | ||||||
| 22.0 | 4700 | 5300 | 6100 | 6200 | 6200 | 5900 | 5500 | 5800 | 6200 | 6400 | 6000 | 6300 | 6500 | 6100 | 5900 | ||||||
| 24.0 | 4300 | 5100 | 5200 | 5200 | 5300 | 5000 | 5300 | 5400 | 5400 | 5600 | 5500 | 5600 | |||||||||
| 26.0 | 4200 | 4200 | 4400 | 4600 | 4500 | 4700 | 4800 | 4900 | 5000 | ||||||||||||
| 28.0 | 3500 | 3600 | 3800 | 4100 | 3800 | 4000 | 4200 | 4300 | 4400 | ||||||||||||
| 30.0 | 3100 | 3200 | 3500 | 3000 | 3600 | 3900 | |||||||||||||||
| 32.0 | 2600 | 2700 | 3000 | 3000 | 3100 | 3400 | |||||||||||||||
| 34.0 | 2300 | 2500 | 2700 | ||||||||||||||||||
| 36.0 | 1900 | 2200 | 2400 | ||||||||||||||||||
| 38.0 | 1900 | ||||||||||||||||||||
| 40.0 | 1500 | ||||||||||||||||||||
| I | 0% | 50% | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 0% | 0% | 0% | 0% | 0% | 0% | 50% | 50% | 50% | 50% | 50% | 50% |
| II | 0% | 0% | 0% | 16.70% | 33.30% | 50% | 66.70% | 83.30% | 100% | 16.70% | 33.30% | 50% | 66.70% | 83.30% | 100% | 16.70% | 33.30% | 50% | 66.70% | 83.30% | 100% |
| Rate | 12 | 10 | 8 | 4 | 4 | 4 | 4 | 3 | 3 | 4 | 4 | 4 | 4 | 3 | 3 | 4 | 4 | 4 | 4 | 3 | 3 |
